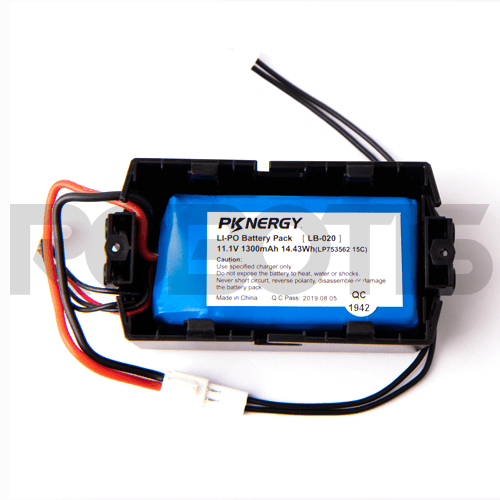

LIPO Battery 11.1V 1300mAh LB-020
Features
This LiPo battery is intended for Engineer Kits.
PCM is incorporated to protect the battery from overcharge, discharge, and excessive current.
Can be recharged with LBC-010 Battery Charger.
Package Components
| LIPO Battery 11.1V 1300mAh LB-020 | 1 |
|---|---|
| EF25-F27 | 1 |
| EF25-F26 | 1 |
| Battery Extension Cable | 1 |
*Battery Charger sold separately
H/W Specifications
| Weight | 102g |
|---|---|
| Size | 70mm x 36mm x 24mm |
| Voltage | 11.1V |
| Capacity | 1300mAh |
| Discharge Rate | 15C |
| Etc. | PCM built-in (Overcharge,Discharge,Excessive Current Protection) |
Compatible Products
Controller : CM-510, CM-530, CM-700, CM-550
Charger : LIPO Battery Charger LBC-010
CM-100, CM-5, CM-2+, CM-150, CM-200 , OpenCM7.0 are not compatible
Storage Precautions
Detach the battery from the robot or controller when storing away.
When storing away the battery for a long time, make sure the battery life is around 50%.
Store it out of direct sunlight between 0 and 45 degrees.
Do not store it in wet or hot places.
Do not store with metal items such as coins, keys, necklaces
※ The warranty for LI-PO Battery 11.1V 1300mAh LB-020 is 6 months.
Caution
Do not drop or fold parts of the battery or its parts.
Do not use the product when charging.
Do not apply heat, water or any other liquid on the battery.
Do not place in the microwave, washing machine or dryer.
Do not use damaged batteries. (inflated,deformed, damaged, etc)
Do not short circuit the polarity.
Do not take the battery apart.
When charging, make sure the battery is connected into the correct polarity.
Do not charge when the battery is hot. Please charge after it has cooled off.
When the battery is not being used or fully charged, please do not have it connected to a controller.
Do NOT charge the battery when the battery is connected to the controller.
